HSK/SK 高速机专用刀杆
■本体精度≤2μm
■动平衡G2.5 25000rpm
■SK筒夹锥度:4°，增加夹持力、提高稳定性
-
0.000.00
- 型号：
-
-
商品描述
■本体精度≤2μm
■动平衡G2.5 25000rpm
■SK筒夹锥度:4°，增加夹持力、提高稳定性
● 产品特点
1.标准动平衡G2.5 30000rpm
2.本体规范：DIN69893
3.整体精研磨，增加光洁度和耐磨性，以便达到更好的使用效果
4.真空淬火加硬
● 规格

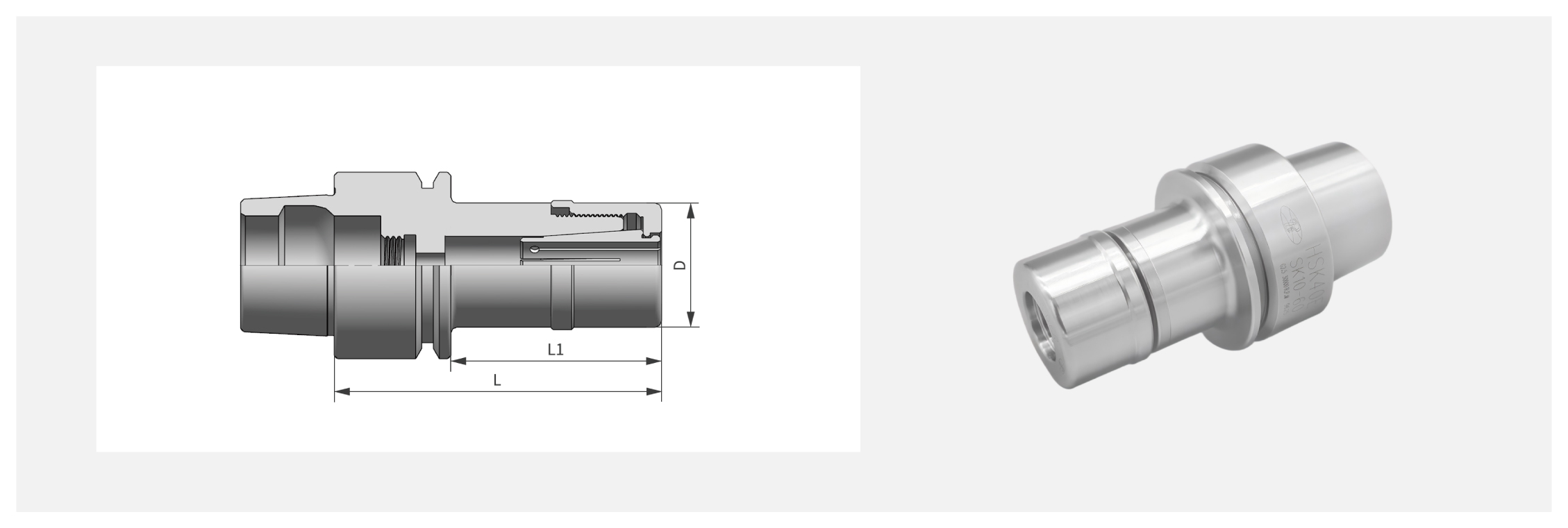

数控加工中心HSK高精度刀柄 高速机动平衡SK刀杆

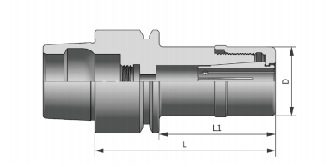

| 规格 Spec. | D [mm] | L [mm] | L1 [mm] | 筒夹 [collet] | 螺帽 [nut] | 扳手 [wrench] | |
| HSK40A | -SK06-60 | 19.5 | 60 | 40 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |

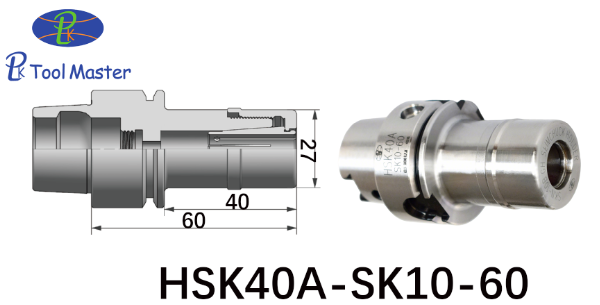

| -SK10-60 | 27 | 60 | 40 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| HSK50A | -SK06-100 | 19.5 | 100 | 74 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |
| -SK10-100 | 27 | 100 | 74 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK16-100 | 40 | 100 | 74 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| HSK63A | -SK06-100 | 19.5 | 100 | 74 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |
| -SK10-90 | 27 | 90 | 64 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK10-100 | 27 | 100 | 74 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK16-90 | 40 | 90 | 64 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| -SK16-100 | 40 | 100 | 74 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| -SK16-120 | 40 | 120 | 94 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| -5K20-105 | 48 | 105 | 79 | SK20 | SK20-P/SK20-HS | SK20-W/W-HS | |
| -5K20-120 | 48 | 120 | 94 | SK20 | SK20-P/SK20-HS | SK20-W/W-HS | |
| -5K25-120 | 54 | 120 | 94 | SK25 | SK25-P | SK25-W | |
| HSK100A | -5K06-100 | 19.5 | 100 | 71 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |
| -SK10-105 | 27 | 105 | 76 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK16-105 | 40 | 105 | 76 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| -5K25-120 | 54 | 120 | 91 | SK25 | SK25-P | SK25-W | |
| 规格 Spec. | D [mm] | L [mm] | L1 [mm] | 筒夹 [collet] | 螺帽 [nut] | 扳手 [wrench] | |
| HSK32E | -SK06-60 | 19.5 | 60 | 40 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |
| -SK10-60 | 27 | 60 | 40 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| HSK40E | -SK06-60 | 19.5 | 60 | 40 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |
| -SK06-80 | 19.5 | 80 | 60 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS | |
| -SK10-60 | 27 | 60 | 40 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK10-80 | 27 | 80 | 60 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |

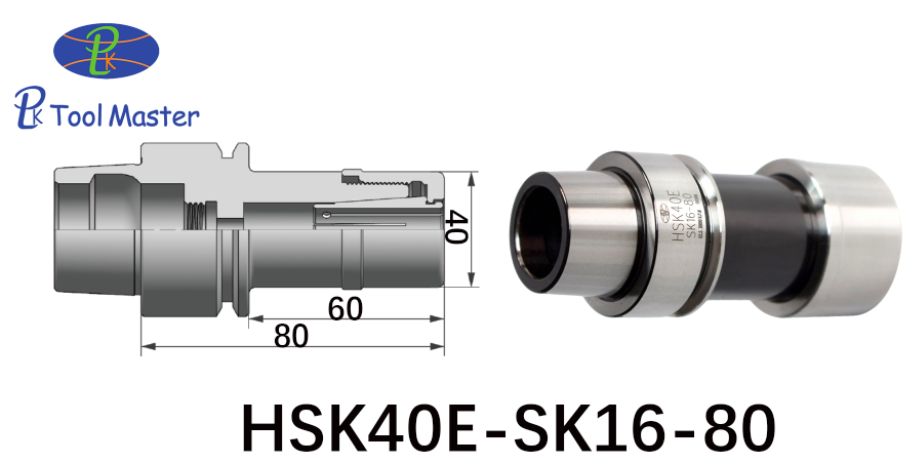

| -SK16-80 | 40 | 80 | 60 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |
| HSK50E | -SK06-100 | 19.5 | 100 | 74 | SK06 | SK6-P/SK6-HS | SK6-W/W-HS |

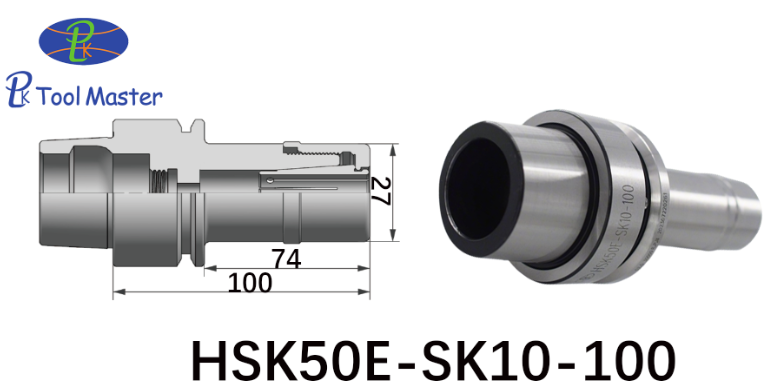

| -SK10-100 | 27 | 100 | 74 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS | |
| -SK16-100 | 40 | 100 | 74 | SK16 | SK16-P/SK16-HS | SK16-W/W-HS | |

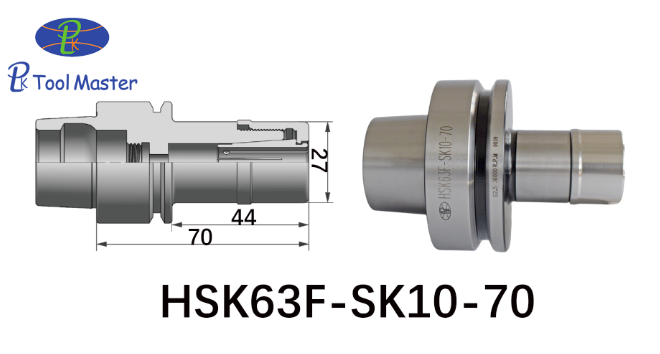

| HSK63F | -SK10-70 | 27 | 70 | 44 | SK10 | SK10-P/SK10-HS | SK10-W/W-HS |
