HSK-A侧固式高速刀柄

名称描述内容

商品描述

重切削，一般铣削加工

● 特点

重切削

一般铣削加工

● 规格

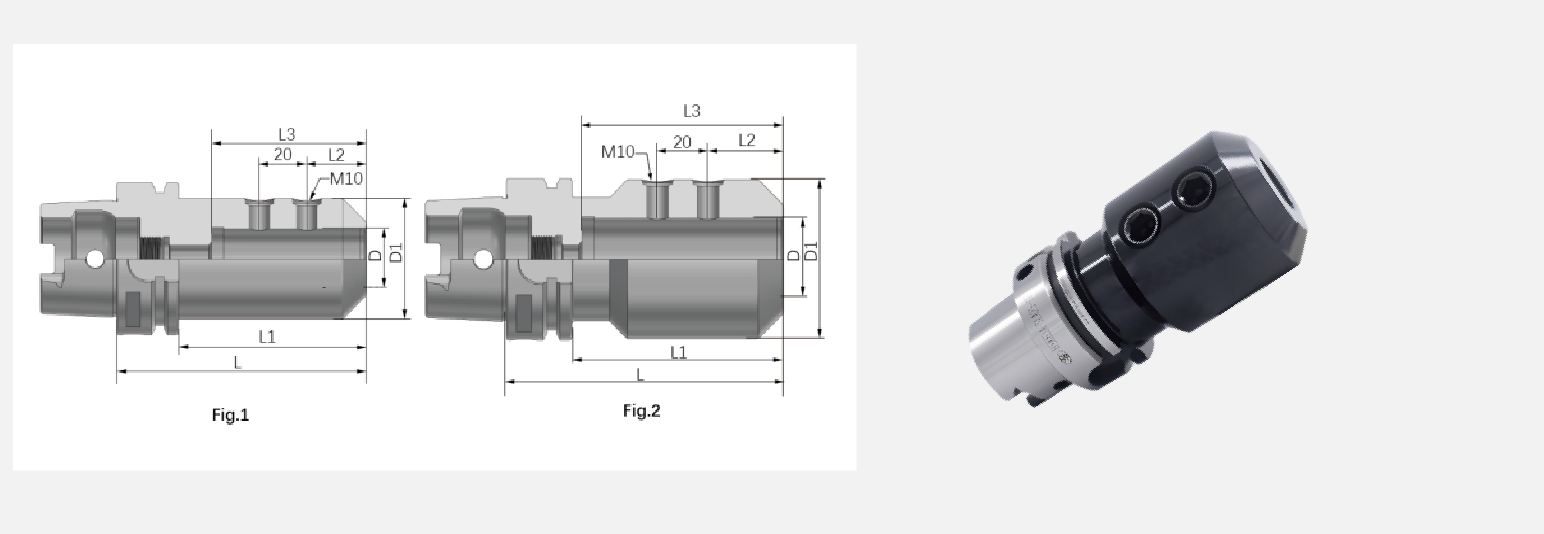

侧固式立铣刀柄数控侧固刀柄

规格 Spec.	φd	L	φd1	L1	L2	L3	L4	固定螺丝
HSK50A-SLE06-065	6	65	25	39	18	-	36	M6
HSK50A-SLE08-065	8	65	28	39	18	-	40	M8
HSK50A-SLE08-080	10	80	35	54	20	-	50	M10
HSK50A-SLE08-080	12	80	42	54	22.5	-	55	M12
HSK50A-SLE08-080	16	80	48	54	24	-	55	M12
HSK50A-SLE08-080	20	80	52	54	25	-	55	M16
HSK63A-SLE06-065	6	65	25	39	18	-	36	M6
HSK63A-SLE08-065	8	65	28	39	18	-	40	M8
HSK63A-SLE10-080	10	80	35	54	20	-	50	M10
HSK63A-SLE12-080	12	80	42	54	22.5	-	55	M12
HSK63A-SLE16-080	16	80	48	54	24	-	55	M12
HSK63A-SLE20-080	20	80	52	54	25	-	55	M16
HSK63A-SLE25-110	25	65	65	84	24	28	65	M16
HSK63A-SLE32-110	32	65	72	84	24	24	70	M16
HSK100A-SLE06-080	6	80	25	51	18	-	30	M6
HSK100A-SLE08-080	8	80	28	51	18	-	40	M8
HSK100A-SLE10-080	10	80	35	51	20	-	50	M10
HSK100A-SLE12-100	12	100	42	71	22.5	-	55	M12
HSK100A-SLE16-100	16	100	48	71	24	-	60	M12
HSK100A-SLE20-100	20	100	52	71	25	-	60	M16
HSK100A-SLE25-100	25	100	65	71	24	32	65	M16
HSK100A-SLE32-100	32	100	72	71	19	28	65	M16
HSK100A-SLE40-110	40	110	85	81	25	24	75	M20

规格 Spec.	φd [mm]	L [mm]	φd1 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	固定螺丝
HSK63A-SLE06-065	6	65	25	39	18	-	36	M6
HSK63A-SLE08-065	8	65	28	39	18	-	40	M8
HSK63A-SLE10-080	10	80	35	54	20	-	50	M10
HSK63A-SLE12-080	12	80	42	54	22.5	-	55	M12
HSK63A-SLE16-080	16	80	48	54	24	-	55	M12
HSK63A-SLE20-080	20	80	52	54	25	-	55	M16
HSK63A-SLE25-110	25	65	65	84	24	28	65	M16
HSK63A-SLE32-110	32	65	72	84	24	24	70	M16

规格 Spec.	φd	L	φd1	L1	L2	L3	L4	固定螺丝
HSK100A-SLE06-080	6	80	25	51	18	-	30	M6
HSK100A-SLE08-080	8	80	28	51	18	-	40	M8
HSK100A-SLE10-080	10	80	35	51	20	-	50	M10
HSK100A-SLE12-100	12	100	42	71	22.5	-	55	M12
HSK100A-SLE16-100	16	100	48	71	24	-	60	M12
HSK100A-SLE20-100	20	100	52	71	25	-	60	M16
HSK100A-SLE25-100	25	100	65	71	24	32	65	M16
HSK100A-SLE32-100	32	100	72	71	19	28	65	M16
HSK100A-SLE40-110	40	110	85	81	25	24	75	M20
