HSK-A/ER高精度刀柄
1.动平衡G2.5 30000rpm
2.真空淬火加硬处理后，提升耐磨性
3.精密研磨而成，增加光洁度，以便达到更好的使用效果-
0.000.00
- 型号：
-
-
商品描述
1.动平衡G2.5 30000rpm
2.真空淬火加硬处理后，提升耐磨性
3.精密研磨而成，增加光洁度，以便达到更好的使用效果
● 特点
1.动平衡G2.5 30000rpm
2.真空淬火加硬处理后，提升耐磨性
3.精密研磨而成，增加光洁度，以便达到更好的使用效果
● 规格
高精度HSK弹性刀柄 CNC动平衡刀柄
| 规格 Spec. | 筒夹 [collet] | D [mm] | L [mm] | L1 [mm] | |
| HSK40A | -ER16-80 | ER16 | 28 | 80 | 60 |
| -ER16-100 | ER16 | 28 | 100 | 80 | |
| -ER20-80 | ER20 | 34 | 80 | 60 | |
| -ER25-80 | ER25 | 42 | 80 | 60 | |

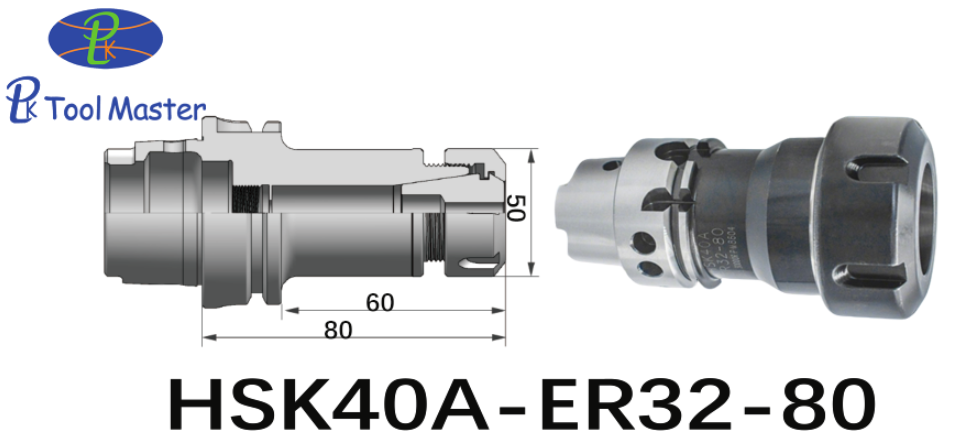

| -ER32-80 | ER32 | 50 | 80 | 60 | |
| 规格 Spec. | 筒夹 [collet] | D [mm] | L [mm] | L1 [mm] | |
| HSK50A | -ER16-70 | ER16 | 28 | 70 | 44 |
| -ER16-100 | ER16 | 28 | 100 | 74 | |
| -ER16-120 | ER16 | 28 | 120 | 94 | |
| -ER20-100 | ER20 | 34 | 100 | 74 | |
| -ER20-120 | ER20 | 34 | 120 | 94 | |

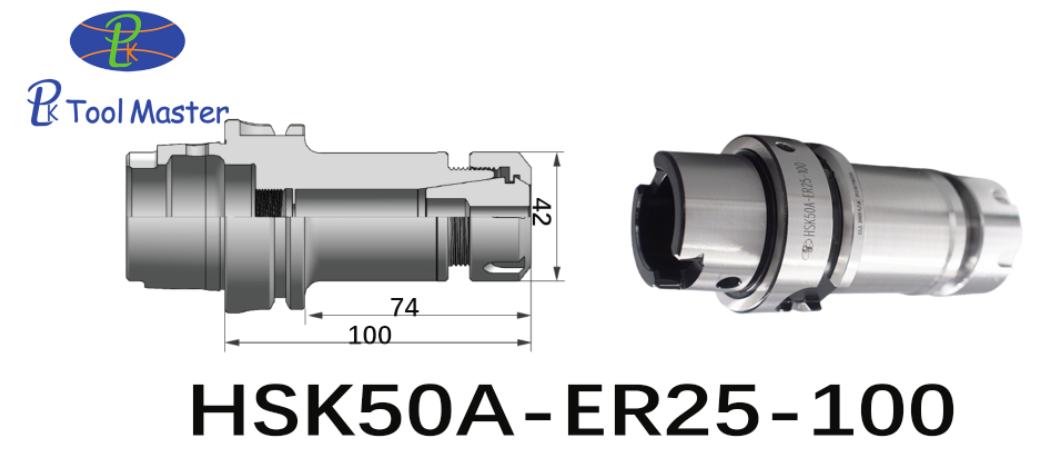

| -ER25-100 | ER25 | 42 | 100 | 74 | |
| -ER25-135 | ER25 | 42 | 135 | 109 | |

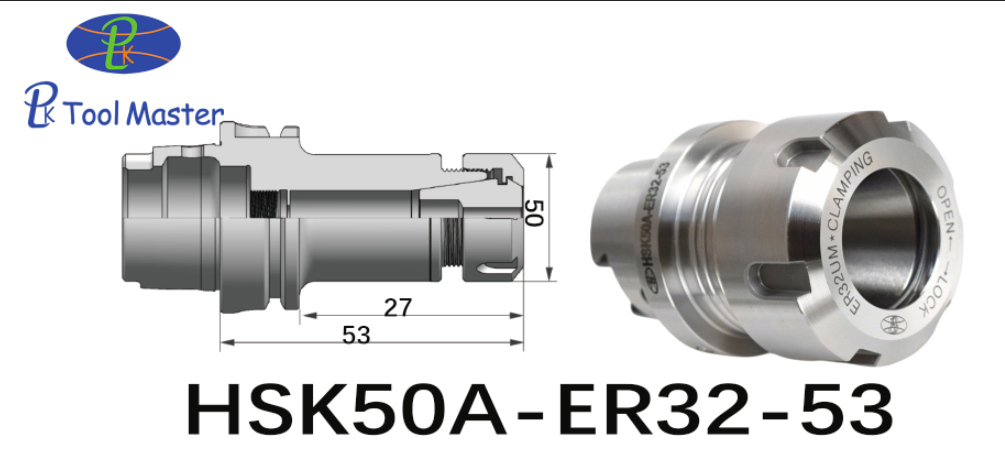

| -ER32-53 | ER32 | 50 | 53 | 27 | |

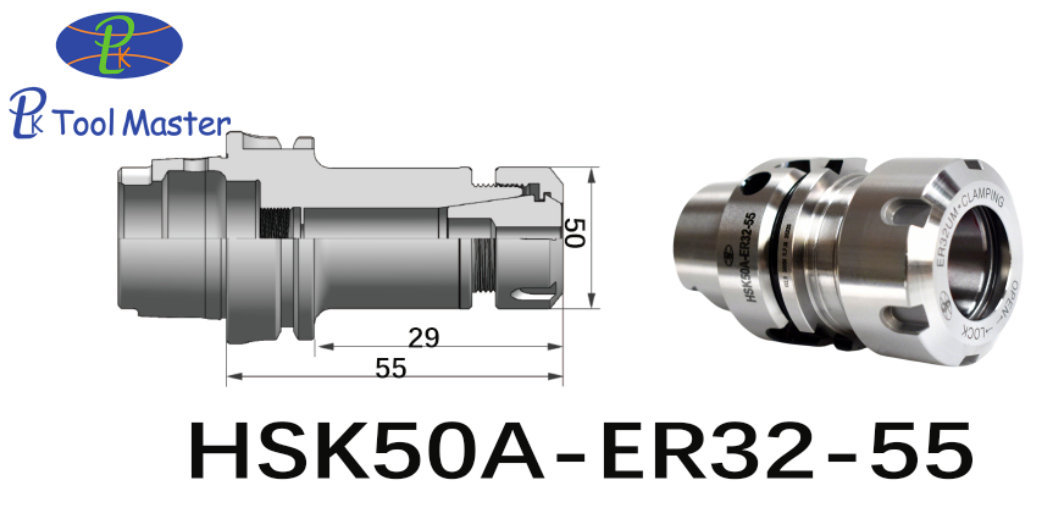

| -ER32-55 | ER32 | 50 | 55 | 29 | |
| -ER32-100 | ER32 | 50 | 100 | 74 | |
| -ER32-130 | ER32 | 50 | 130 | 104 | |
| -ER32-135 | ER32 | 50 | 135 | 109 | |
| -ER32-160 | ER32 | 50 | 160 | 134 | |
| 规格 Spec. | 筒夹 [collet] | D [mm] | L [mm] | L1 [mm] | |
| HSK63A | -ER16-90 | ER16 | 28 | 90 | 64 |
| -ER16-100 | ER16 | 28 | 100 | 74 | |
| -ER16-120 | ER16 | 28 | 120 | 94 | |
| -ER16-160 | ER16 | 28 | 160 | 134 | |
| -ER20-100 | ER20 | 34 | 100 | 74 | |
| -ER20-120 | ER20 | 34 | 120 | 94 | |

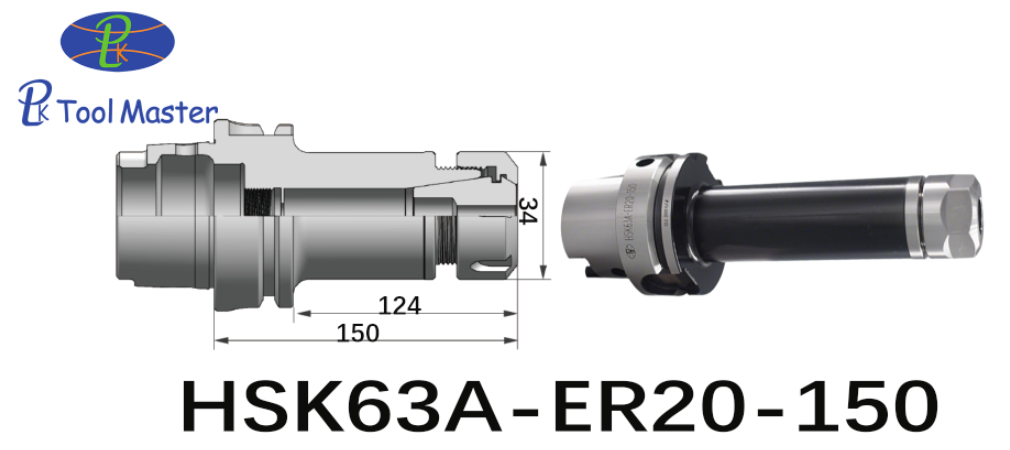

| -ER20-150 | ER20 | 34 | 150 | 124 | |
| -ER20-200 | ER20 | 34 | 200 | 174 | |
| -ER20-350 | ER20 | 34 | 350 | 324 | |
| -ER25-100 | ER25 | 42 | 100 | 74 | |

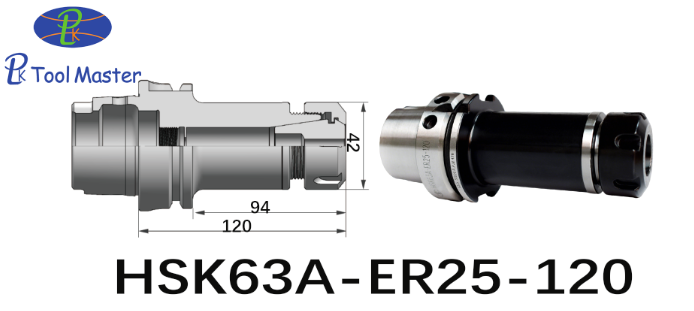

| -ER25-120 | ER25 | 42 | 120 | 94 | |
| -ER25-160 | ER25 | 42 | 160 | 134 | |
| -ER32-80 | ER32 | 50 | 80 | 54 | |

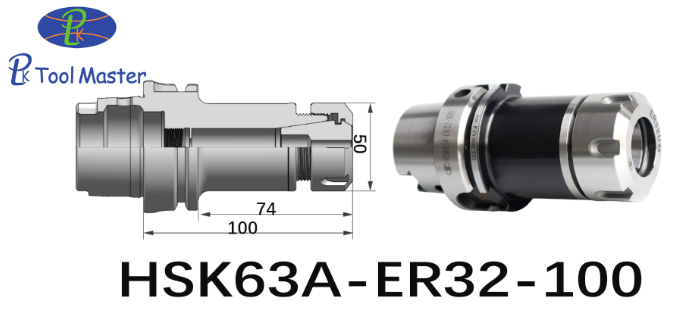

| -ER32-100 | ER32 | 50 | 100 | 74 | |
| -ER32-120 | ER32 | 50 | 120 | 94 | |
| -ER32-145 | ER32 | 50 | 145 | 119 | |
| -ER32-160 | ER32 | 50 | 160 | 134 | |
| -ER40-80 | ER40 | 63 | 80 | 54 | |
| -ER40-100 | ER40 | 63 | 100 | 74 | |
| -ER40-120 | ER40 | 63 | 120 | 94 | |
| -ER40-150 | ER40 | 63 | 150 | 124 | |
| 规格 Spec. | 筒夹 [collet] | D [mm] | L [mm] | L1 [mm] | |
| HSK100A | -ER16-100 | ER16 | 28 | 100 | 71 |
| -ER16-160 | ER16 | 28 | 160 | 131 | |
| -ER20-100 | ER20 | 34 | 100 | 71 | |
| -ER20-160 | ER20 | 34 | 160 | 131 | |
| -ER25-100 | ER25 | 42 | 100 | 71 | |
| -ER25-130 | ER25 | 42 | 130 | 101 | |
| -ER32-100 | ER32 | 50 | 100 | 71 | |
| -ER32-135 | ER32 | 50 | 135 | 106 | |
| -ER32-150 | ER32 | 50 | 150 | 121 | |
| -ER40-120 | ER40 | 63 | 120 | 91 | |
| -ER40-175 | ER40 | 63 | 175 | 146 | |
